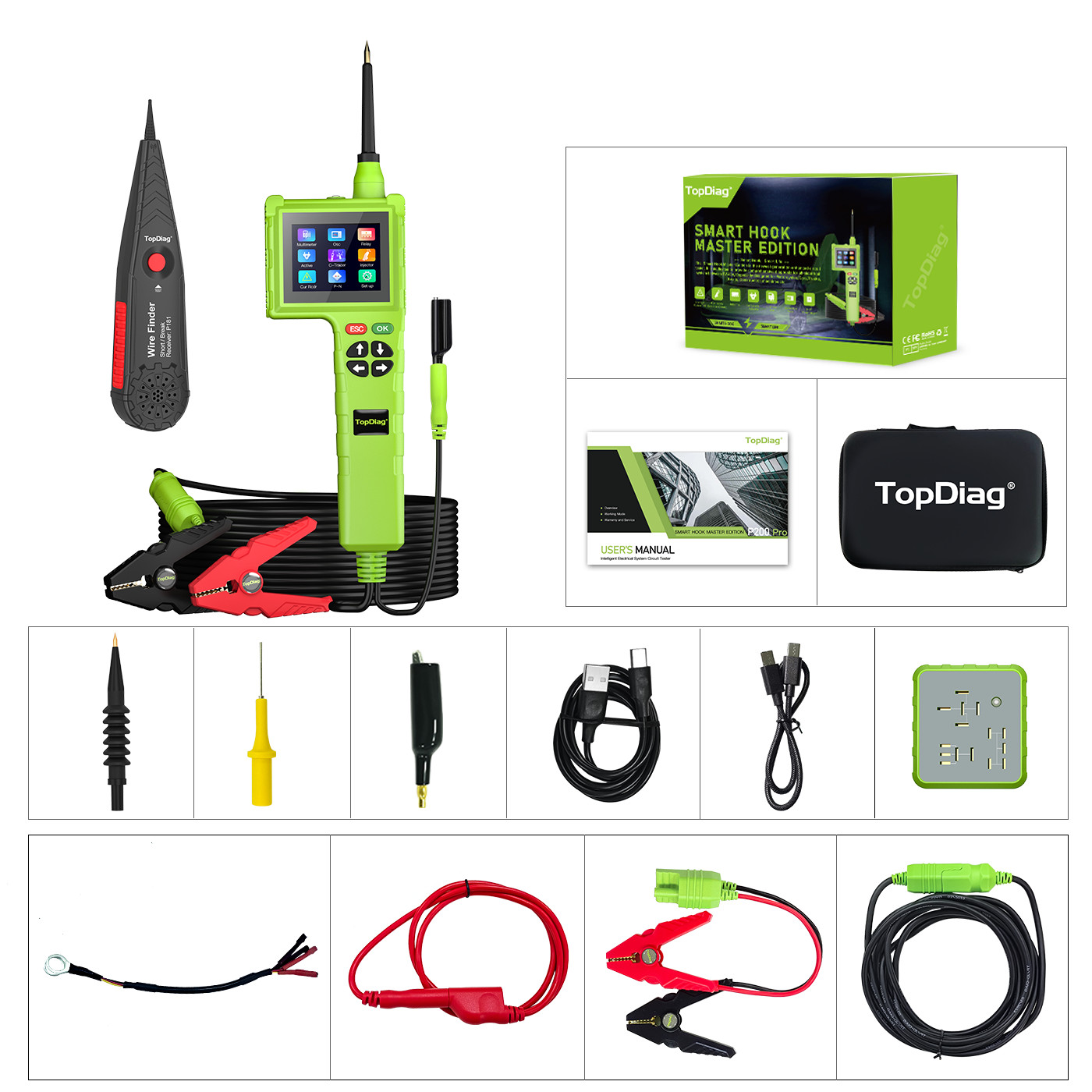

Topdiag P200 Pro Car Circuit Tester Power Probe Kit Relay Fuel Injector Tester
Topdiag P200 Pro Car Circuit Tester Power Probe Kit Relay Fuel Injector Tester
USD 159.00 USD
Specifications
| Brand | TopDiag |
| Country/Region Of Manufacture | China |
| Warranty | 1 Year |
| Item Weight | 2kg |
| Item Width | 23.3cm |
| Model Name | P200 Pro |
| Hardware Version | latest version |
| Operating Voltage | 9-48v |
| Measuring Voltage | 2mV-100v |
| Storage Temperature | -40℃-70℃ |
| Material Type | abs |
| Item Height | 10.8cm |
| Item Length | 30.4cm |
| Voltage | 9-48V |
| Software Version | latest version |
| Measuring Current | 3mA-25A |
| Working Current | 150mA |
| Measuring Resistance | 10milliohms--10megohms |
| Measurement Frequency | 10Hz--1MHz |
| Operating Temperature | 0-60℃ |
| 🏆Feature1 | Leakage Current Test |
| 🏆Feature2 | Fuel Injector Test |
| 🏆Feature3 | Fuel Injector Cleaning |
| 🏆Feature4 | Relay Test |
| 🏆Feature5 | Components Activation |
| 🏆Feature6 | Multimeter Mode |
| 🏆Feature7 | Oscilloscope Mode |
Support for injector nozzle signal analogue output, injector nozzle signal acquisi-. [Injector testing/cleaning]. [Relay testing]. in circuit systemse.g. Components such as car bulbs, motors, gauges,etc.
Related Items

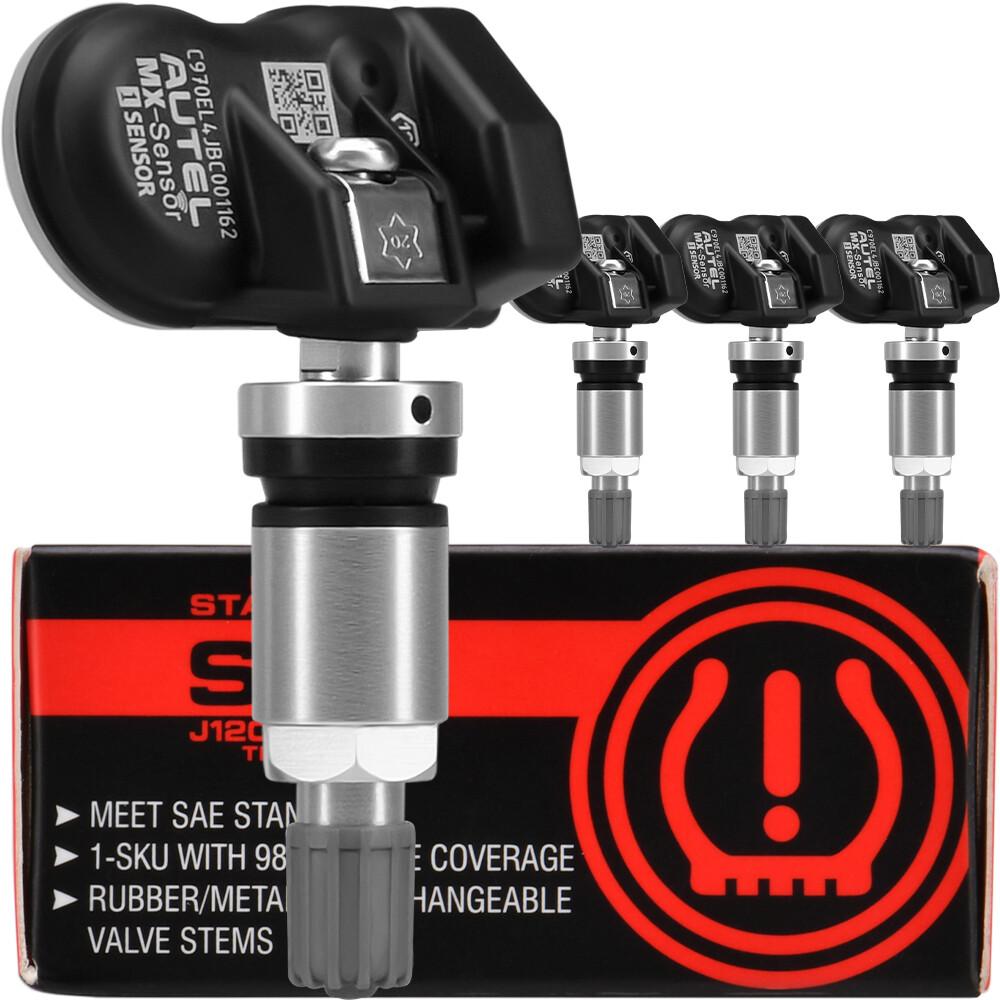

4pcs Autel MX-Sensor 315&433MHz Programmable TPMS Universal Tire pressure Sensor
